PVD coated
● Surface hardness:
HV2200-2400
● Oxidizing temperature:
600℃
● Friction coefficient:
0.55
● Application:
Mild steel, Medium hardness steel
PVD coated
HV2200-2400
600℃
0.55
Mild steel, Medium hardness steel
Only a few microns thick, the PVD coating increases surface hardness and, along with the low friction coefficient, prevents built up edge. Also, the feed speed can be improved by about 50% compared to non-coated products, thanks to the high thermal resistance. As a result, cutting time is reduced, the saw needs to be replaced less often, and its life is also lengthened.
PVD coated
HV3300-3500
800℃
0.60
High hardness steel, Stainless steel, titanium steel
This blade is optimal for cutting high-tensile steel material or stainless steel. Thanks to the high thermal resistance and low friction coefficient, high-speed dry cutting is supported.
HV900
0.65
Common steel excerpt nonferrous metal
The entire blade is steam treated and has a black oxide (Fe3 O4) coating with oil-bearing properties. Use it for ordinary material cutting, except for non-ferrous metals.
HV750-850
Nonferrous metal such as Aluminum and Copper

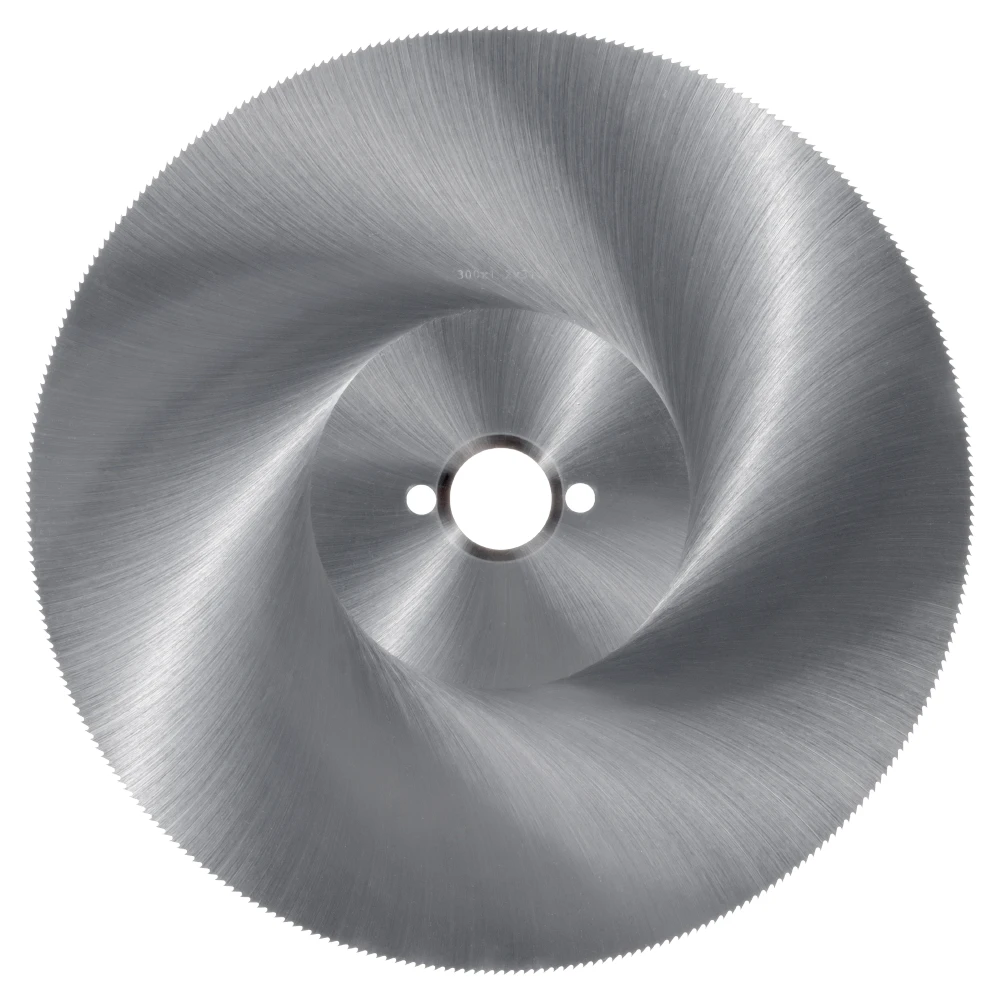

This blade has no surface treatment and is mainly used for cutting non-ferrous metals.
Variable (unequal pitch), +5°rake angle
● Developed as a special blade for cutting H-steel and other structural steels.
● Particularly suitable for cutting materials that vibrate during cutting.
● This is a special blade designed for cutting structural steel, with a large second angle on the cutting edge and sufficient measures to prevent the blade from splintering.
● Please carry out a sufficient test run when using a new blade.
● M42: Hardness of cutting edge, 68 - 69HRC
● Standard saw set: Special shape, deviating from VR and VH.
● Wide saw set: (WS = wide set) The saw set width is intended for cutting materials prone to narrowing, such as structural steel, relative to the body thickness.
● Stock Status
[M42]
| Saw Blade Width × Thickness (mm) | Saw Blade Pitch (number of peaks per inch T,P,I) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Saw Set | Wide (WS) Saw Set | ||||||||
| 2/3 | 3/4 | 4/6 | 5/7 | 6/10 | 8/12 | 10/14 | 2/3 | 3/4 | |
| 27 × 0.9 | - | ● | - | ● | - | - | - | - | - |
| 34 × 1.1 | - | - | - | ● | - | - | - | ● | ● |
| 41 × 1.3 | - | - | - | ● | - | - | - | ● | ● |
| 54 × 1.6 | - | - | - | - | - | - | - | ● | ● |
| 67 × 1.6 | - | - | - | - | - | - | - | ● | ● |
Variable (unequal pitch), 0° rake angle
● Effective for cutting thin materials, channels, angles and thin-walled pipes.
● Wide saw set are also available for cutting long objects that can be constricted during cutting.
● M42: Hardness of cutting edge, 68 - 69HRC
● Standard saw set: The saw set width is approximately 1.6 times the body thickness.
● Wide saw set: (WS = wide set) The saw set width is intended for cutting materials prone to narrowing, such as structural steel, relative to the body thickness.
● Stock Status
[M42]
| Saw Blade Width × Thickness (mm) | Saw Blade Pitch (number of peaks per inch T,P,I) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Saw Set | Wide (WS) Saw Set | ||||||||
| 2/3 | 3/4 | 4/6 | 5/8 | 6/10 | 8/12 | 10/14 | 2/3 | 3/4 | |
| 13 × 0.65 | - | - | - | - | - | ● | ● | - | - |
| 16 × 0.65 | - | - | - | - | - | - | ● | - | - |
| 20 × 0.9 | - | - | ● | ● | ● | ● | ● | - | - |
| 27 × 0.9 | - | ● | ● | ● | ● | ● | ● | - | - |
| 34 × 1.1 | - | ● | ● | ● | ● | - | - | - | - |
| 41 × 1.3 | - | ● | ● | ● | - | - | - | ● | ● |
Variable (unequal pitch),
rake angle + (plus) 5° - 10°
[M42]
● Particularly effective when cutting solid and flat bar materials that produce a lot of chippings.
● The rake face has a positive angle to improve cutting performance. Not suitable for cutting tasks that tend to cause vibration.
● ide saw set are also available for large cuttings.
[M51] (for cutting hard and difficult-to-cut materials)
● For cutting materials that are difficult to cut.
● However, not suitable for workpieces that tend to vibrate during cutting.
● Suitable for cutting materials with high hardness, but please carry out a sufficient test run.
● M42: Hardness of cutting edge 68 - 69HRC
● M51: Hardness of cutting edge 69HRC or higher
● Standard Saw Set: The saw set width is approximately 1.6 times the body thickness.
● Wide saw set: (WS = wide set) The saw set width is intended for cutting materials prone to narrowing, such as structural steel, relative to the body thickness.
● Stock Status
[M42]
| Saw Blade Width × Thickness (mm) | Saw Blade Pitch (number of peaks per inch T,P,I) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Saw Set | Wide (WS) Saw Set | ||||||||
| 0.75/1.25 | 1.4/2 | 2/3 | 3/4 | 4/6 | 5/8 | 6/10 | 2/3 | 3/4 | |
| 27 × 0.9 | - | - | ● | ● | ● | - | - | - | - |
| 34 × 1.1 | - | - | ● | ● | ● | - | - | - | - |
| 41 × 1.3 | - | - | ● | ● | ● | - | - | ● | ● |
| 54 × 1.3 | - | - | ● | ● | - | - | - | - | - |
| 54 × 1.6 | ● | ● | ● | ● | ● | - | - | ● | ● |
| 67 × 1.6 | - | - | - | - | - | - | - | ● | ● |
[M51]
| Saw Blade Width × Thickness (mm) | Saw Blade Pitch (number of peaks per inch T,P,I) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Saw Set | Wide (WS) Saw Set | ||||||||
| 1.4/2 | 2/3 | 3/4 | 4/6 | 5/8 | 6/10 | 8/12 | 2/3 | 3/4 | |
| 27 × 0.9 | - | - | ● | ● | - | - | - | - | - |
| 34 × 1.1 | - | ● | ● | ● | - | - | - | - | - |
| 41 × 1.3 | - | ● | ● | - | - | - | - | - | - |
| 54 × 1.6 | - | ● | - | - | - | - | - | - | - |
Constant (equal pitch),
rake angle R=0° H=+5° - 10°
● As a general-purpose type, the saw pitch is constant (equal pitch).
● With R = no rake angle and H = 5° to 10° rake angle.
● Main area of application is non-ferrous metals, but can also be used for intermittent cutting due to the short blade length.
● M42: Hardness of cutting edge 68 - 69HRC
● Standard saw set: The saw set width is approximately 1.6 times the body thickness.
● Stock Status
[M42]
| Saw Blade Width × Thickness (mm) | Saw Blade Pitch (number of peaks per inch T,P,I) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Saw Set | |||||||||
| 1.25 | 2 | 3 | 4 | 6 | 8 | 10 | 14 | 18 | |
| 13 × 0.65 | - | - | - | - | - | - | R | R | R |
| 16 × 0.65 | - | - | - | - | - | - | R | R | R |
